| 首页>>产品中心>>锻钢制螺纹管件系列>>螺纹管箍、管帽 |
 |
| |
 |
 |
 |
|
|

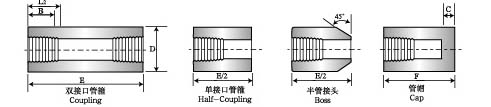

螺纹管帽 |
| |
|
|
 |
公称通径
Nominal Pipe Size |
管箍、半管接头
Coupling、Boss |
管帽
Caps |
所有管件
All Fittings |
端面至端面
End to
End |
端面至端面
End to
End |
底部壁厚
Wall
Thickness |
外径
Outside
Diameter |
螺纹长度
Length of Thread
Min |
E |
F |
C min |
D |
DN |
NPS |
SCH160、XXS
3000、6000 |
SCH160
3000 |
XXS
6000 |
SCH160
3000 |
XXS
6000 |
SCH160
3000 |
XXS
6000 |
B |
L2 |
6
8
10 |
1/8
1/4
3/8 |
32
35
38 |
19
25
25 |
--
27
27 |
4.8
4.8
4.8 |
--
6.4
6.4 |
16
19
22 |
22
25
32 |
6.4
8.1
9.1 |
6.7
10.2
10.4 |
15
20
25 |
1/2
3/4
1 |
48
51
60 |
32
37
41 |
33
38
43 |
6.4
6.4
9.7 |
7.9
7.9
11.2 |
28
35
44 |
38
44
57 |
10.9
12.7
14.7 |
13.6
13.9
17.3 |
32
40
50 |
11/4
11/2
2 |
67
79
86 |
44
44
48 |
46
48
51 |
9.7
11.2
12.7 |
11.2
12.7
15.7 |
57
64
76 |
65
76
92 |
17.0
17.8
19.0 |
18.0
18.4
19.2 |
65
80
100 |
21/2
3
4 |
92
108
121 |
60
65
68 |
64
68
75 |
15.7
19.0
22.4 |
19.0
22.4
28.4 |
92
108
140 |
108
127
159 |
23.6
25.9
27.7 |
28.9
30.5
33.0 |
●螺纹管件中的螺纹形式为GB/T12716(ANSI/ASME
B1.20.1)中的60°圆锥管螺纹NPT；
如采用其它型式的螺纹请在订货时。
●The
standards and codes of the threaded fittings is conical threaded NPT angle
60°of GB/T 12716(ANSI/ASME B1.20.1), and if requiring othertypes of
thread, please indicate them in purchased rder.
|
|
|
|
|
|
 |
|
