月弯, 弯管

标准
Standards

按DL/T515《电站弯管》、SY5257《钢制弯管》执行，或按顾客提出的标准或技术要求执行
According to DL/T515《Electric Station Bends》Sy5257《Steel Bends》or the standards and specifications required by purchaser

材料
Materials

碳钢、合金钢、不锈钢无缝、直缝或螺旋焊缝钢管
Carbon Steel, alloy steel, stainless steel seamless and seam weld pipe

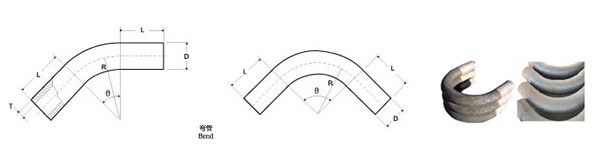

弯曲半径R
Radius of Bend

R≤6000mm，且R≥3D（用R等于3D、4D、5D、6D、7D、8D、9D、10D来表示弯曲半径，D为管子外径）
R≤6000mm and R≥3D(Radius of Bend are shown by R With 3D, 4D, 5D, 6D, 7D, 8D, 9D,10D, D is Outside Diameter of pipe)

弯曲角度θ
Angle of Bend

常用为15°、30°、45°、60°、90°、135°、和180°，也可按顾客提出的角度弯制
Usual angle is 15°、30°、45°、60°、90°、135°and 180°, oraccording to the requirements of purchaser

直段长度L
Length of Straight

弯管两端直段长度一般在500mm--1500mm，由顾客确定长度的大小
The lengths of straight at the two ends are usually 500mm--1500mm, of according to the purchaser's option

外径D
Outside Diameter

D≤1220mm

壁厚T
Wall Thickness

T≤120mm

端部坡口
End Bevel

按对焊管件焊端坡口结构型式执行
According to the end devel of butt-welding Fittings.
