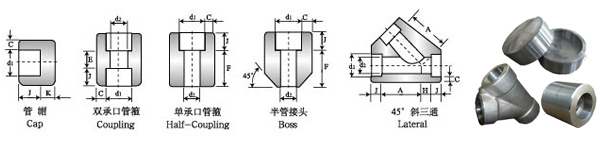

公称通径
Nominal Pipe Size
|
承插孔深度
Depth of Socket
|
壁厚
Wall Thickness
|
管帽顶厚
End Wall Thickness of Caps
|
结构长度
Laying length
|
中心至承插孔底
Center to Bottom of Socket
|
|
双承口管箍
Couplings
|
单承口管箍半管接头
Half-Couplings Boss
|
45°斜三通
Laterals
|
|
C min
|
K min
|
E
|
F
|
A
|
H
|
|
DN
|
NPS
|
J min
|
SCH80
3000
|
SCH160
6000
|
XXS
9000
|
SCH80
3000
|
SCH160
6000
|
XXS
9000
|
SCH80
3000
SCH160
6000
XXS
9000
|
SCH80
3000
SCH160
6000
XXS
9000
|
SCH80
3000
|
SCH160
6000
|
SCH80
3000
|
SCH160
6000
|
|
6
8
10
|
1/8
1/4
3/8
|
10
10
10
|
3.2
3.8
4.0
|
4.0
4.6
5.1
|
--
--
--
|
5.0
5.0
5.0
|
6.5
6.5
6.5
|
--
--
--
|
6
6
6
|
16
16
18
|
--
32
37
|
--
--
--
|
--
8
8
|
--
--
--
|
|
15
20
25
|
1/2
3/4
1
|
10
13
13
|
4.5
5.0
5.6
|
5.6
7.0
7.9
|
9.4
9.8
11.4
|
6.5
7.0
10.0
|
8.0
9.0
11.0
|
11.0
13.0
14.0
|
10
10
13
|
22
24
29
|
41
51
60
|
51
60
71
|
11
13
14
|
13
14
18
|
|
32
40
50
|
11/4
11/2
2
|
13
13
16
|
6.3
6.3
7.0
|
7.9
8.9
11.0
|
12.2
12.7
13.9
|
10.0
11.0
13.0
|
12.0
13.5
16.5
|
14.0
16.0
19.0
|
13
13
19
|
30
32
41
|
71
81
98
|
81
98
120
|
18
21
25
|
21
25
29
|
|
65
80
100
|
21/2
3
4
|
16
16
19
|
8.9
10.0
10.7
|
12.5
13.8
--
|
--
--
--
|
16.0
19.0
22.0
|
19.5
23.0
28.5
|
--
--
--
|
19
19
19
|
43
45
48
|
--
--
--
|
--
--
--
|
--
--
--
|
--
--
--
|
|
●双承口管箍也可加工成同心异径或偏心异径形式。
●按要求管件也可加工成承插焊和螺纹混合的联接形式。
●Couplings may be processed into concentric or eccentricity.
●Fittings can also be processed into the combination models of socket and threading.
|
